Vyuh CDX Documentation

Vyuh Node Flow is a flexible, high-performance node-based flow editor for Flutter applications, inspired by React Flow. It's great for building visual programming interfaces, workflow editors, interactive diagrams, and data pipelines.

Try the Live Demo

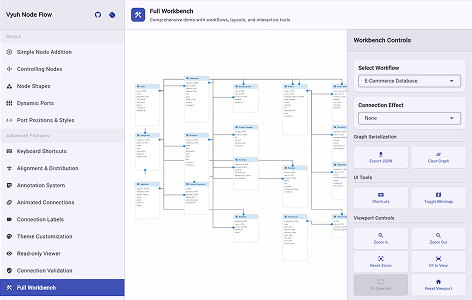

Experience Vyuh Node Flow in action! The live demo showcases all key features including node creation, drag-and-drop connections, custom theming, annotations, minimap, and more.

Launch Demo

Try creating nodes, connecting them, exploring themes, and all interactive features!

Key Features

High Performance

Reactive, optimized rendering for smooth interactions on an infinite canvas

Type-Safe Node Data

Generic type support for strongly-typed node data with excellent pattern matching capabilities using sealed classes

Fully Customizable

Comprehensive theming system for nodes, connections, ports and backgrounds. Style everything to match your brand

Flexible Ports

Multiple port shapes (circle, square, diamond, triangle, capsule, none) with customizable positions, offsets, and multi-connection support. Full connection validation capabilities. Create custom port shapes by extending the base class.

Connection Animation Effects

Built-in effects including FlowingDash (marching ants), Particle (moving dots), GradientFlow (smooth colors), and Pulse (breathing). Create custom effects by extending the base class.

Connection Styles

Multiple connection path styles: bezier curves for smooth flows, step & smoothstep for clean right angles, straight lines for direct paths. Create custom connection paths by extending the base class.

Annotations

Add sticky notes, labels, and custom overlays to enhance your flow diagrams with contextual information

Built-in Minimap

Navigate complex flows with ease using the interactive minimap that shows your entire canvas at a glance

Keyboard Shortcuts

Full keyboard support for power users with customizable shortcuts for common operations

Read-Only Viewer

Display flows without editing capabilities - perfect for presentations and documentation

Serialization

Save and load flows from JSON with type-safe deserialization for persisting your work

Grid Styles

Choose from lines, dots, cross, hierarchical (major/minor), or no grid. Configurable size, color, and snap-to-grid functionality for precise alignment. Create custom grid styles by extending the base class.

Interactive Features

Full interaction support: drag nodes, create connections, pan canvas, zoom (wheel/pinch), multi-select, delete, fit to view, and more

Visual Gallery

Perfect For Building

Vyuh Node Flow is ideal for developers creating:

Data Pipeline Builders

Create visual ETL (Extract, Transform, Load) tools and data processing workflows

Workflow Automation

Build no-code/low-code workflow editors for business process automation

State Machines

Design visual state machine editors for game logic and application flows

Decision Trees

Implement interactive decision tree builders for AI and business logic

System Architecture

Visualize system architecture, microservices, and dependencies

Mind Mapping

Build interactive mind mapping and brainstorming applications

Process Diagrams

Create BPMN-style business process modeling tools

Circuit Designers

Design electronic circuits, network topologies, and component connections

Quick Preview

Here's what a minimal node flow editor looks like:

Simple Flow Editor

import 'package:flutter/material.dart';
import 'package:vyuh_node_flow/vyuh_node_flow.dart';

class SimpleFlowEditor extends StatefulWidget {
  @override
  State<SimpleFlowEditor> createState() => _SimpleFlowEditorState();
}

class _SimpleFlowEditorState extends State<SimpleFlowEditor> {
  late final NodeFlowController<String> controller;

  @override
  void initState() {
    super.initState();

    // 1. Create the controller
    controller = NodeFlowController<String>();

    // 2. Add some nodes
    controller.addNode(Node<String>(
      id: 'node-1',
      type: 'input',
      position: const Offset(100, 100),
      data: 'Input Node',
      outputPorts: const [Port(id: 'out', name: 'Output')],
    ));

    controller.addNode(Node<String>(
      id: 'node-2',
      type: 'output',
      position: const Offset(400, 100),
      data: 'Output Node',
      inputPorts: const [Port(id: 'in', name: 'Input')],
    ));
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: NodeFlowEditor<String>(
        controller: controller,
        theme: NodeFlowTheme.light,
        nodeBuilder: (context, node) => Container(
          padding: const EdgeInsets.all(16),
          child: Text(node.data),
        ),
      ),
    );
  }
}

Just a few lines of code and you have a fully functional, interactive node-based editor!

Platform Support

Works seamlessly across all Flutter platforms:

Platform	Status	Notes
Web	Excellent	Recommended for desktop-like experiences
macOS	Excellent	Full keyboard and mouse support
Windows	Excellent	Full keyboard and mouse support
Linux	Good	Community tested
iOS	Good	Touch interactions optimized
Android	Good	Touch interactions optimized

Best Experience: Web and desktop platforms provide the most intuitive experience due to precise mouse/trackpad input and full keyboard shortcut support.
